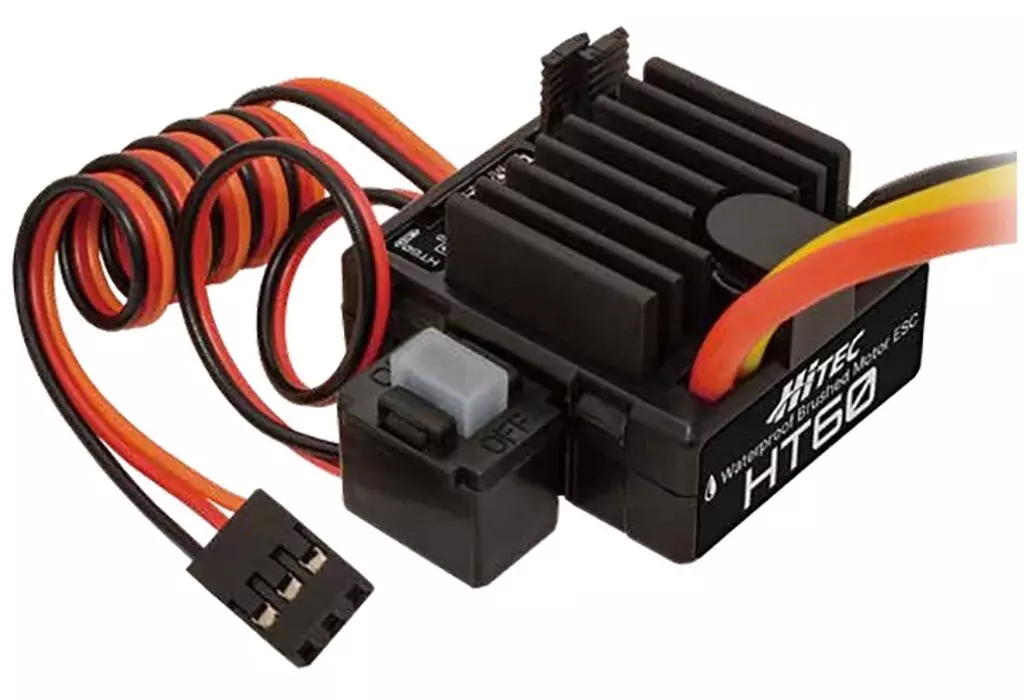

Waterproof Brush Motor ESC HT60 (Tamiya type connector) [61169]

Product description ※Please note that product information is not in full comprehensive meaning because of the machine translation.

Product explanation ■ The waterproof ESC "HT60" with excellent cost performance from hightech is now available!
Waterproof brushless motor with excellent power capability and various protective functions ESC
0 Built-in capacitor with excellent waterproof and dust-proof functions. Designed for all types of cars.
0 3 mode : Suitable for all types of cars including forward mode (with brake), forward / reverse mode (with brake), forward / reverse mode (without brake).
0 Equipped with high-quality special circuits to reduce the influence of surge current and protect equipment.
0 Large BEC output for high-torque servo absorbs fluctuations in power generated during servo operation and maintains efficient operation.
0 Autothrottle calibration that can be done without worry by beginners makes accurate calibration and stable operation possible.
0 Mode setting and operation method can be easily selected using jumper pins.
0 Lipobatteries are equipped with low-voltage cut and high-temperature protection.
SPECIFICATIONS
Forward : Continuous / Peak Current 60A/360A
Backward : Continuous / Peak Current 30A/180A
Compatible Battery Li-Po 2-3 Cells, Ni-MH5-9 Cells
Compatible Types 1/10, 1/12, 1/16 On-road, Off-road,
Short course, buggy, crawler, boat
Type 1/10, 1/12, 1/16 On-road, Off-road,
Short-course, buggy, crawler, boat
Compatible Motor Speed (T) 2-cell Li-Po or 6-cell Ni-MH
540, 550 Motor 15T or more or 30000 rpm @ 7.2v or less
Internal resistance Forward side : 0.001 Ω Backward side : 0.002 Ω BEC output voltage 3A/6V (switching control)
Size : approx. 34.5 x 30.2 x 20.5 mm
Weight : approx. 42g 540 550 30000 7.2
