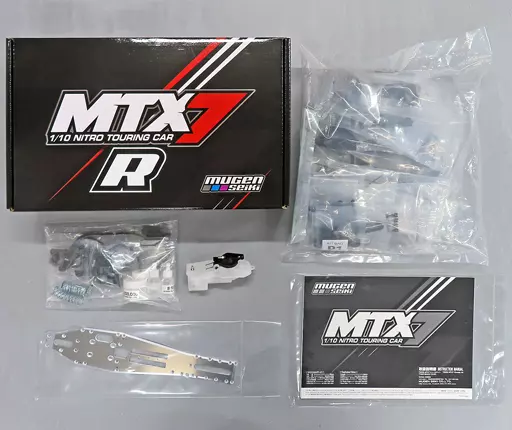

1/10 MTX7R Chassis Kit [T2006]

Product description ※Please note that product information is not in full comprehensive meaning because of the machine translation.

Product Explanation ■ MTX7R has been upgraded based on the previous model! By reviewing the suspension geometry of the front and rear, the sudden behavior has been reduced and the car movement has become easier to predict.
By making the front and rear suspension geometries longer arm by 1 mm and 4.5 mm, the front and rear wheel offsets have been optimized.
MTX7R new parts :
・ T2160 rear lower bulkhead
・ T2161-21 rear anti-roll bar φ 2.1 (optional T2161-20 φ 2.0/T2161-22 φ 2.2/T2161-23 φ 2.3)
・ T2246 axle shaft
・ T2247 aluminum wheel hub (5 mm)
・ T2415 chassis MTX7R
Technical Data :
Total Length : Approx. 380 mm
Total Width : Maximum approx. 200 mm variable
Wheelbase : 257.5 mm - 260.5 mm variable
Tread (front and rear) : 173mm/169mm
F Caster Angle : 6.4 ° - 13.8 ° variable
Gear ratio : 1st. 7.24 : 1 / 2nd. 4.69 : 1
Other requirements :
・ 2 ch radio system & 2 servo
・ Receiver / extension cord (used for approx. 150 mm battery connection)
・ Receiver battery (flat type)
・ 12-class rear exhaust engine
・ muffler
・ manifold
・ manifold spring
・ tires & wheels
・ air filter
・ engine starting equipment
・ body
・ body painting equipment
・ fuel
