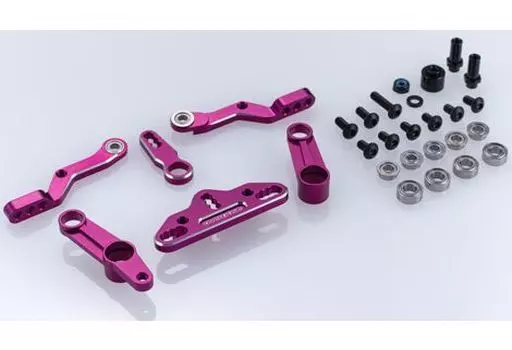

Radio control Triple Link Steering Wiper Set (For GALM Series / Purple) [OD3546]

Product description ※Please note that product information is not in full comprehensive meaning because of the machine translation.

Product Explanation ■ OD's unique new ideas [Triple Link System] Equipped!
The new Steering Wiper Set that leads Ackermann setting to a new field is now available!
By [Triple Link System] from Shinkai, it is possible to adjust the process of changing the Ackermann ratio until reaching the maximum rudder angle by making it possible to adjust the trajectory of the link part which was difficult to change with the conventional method.

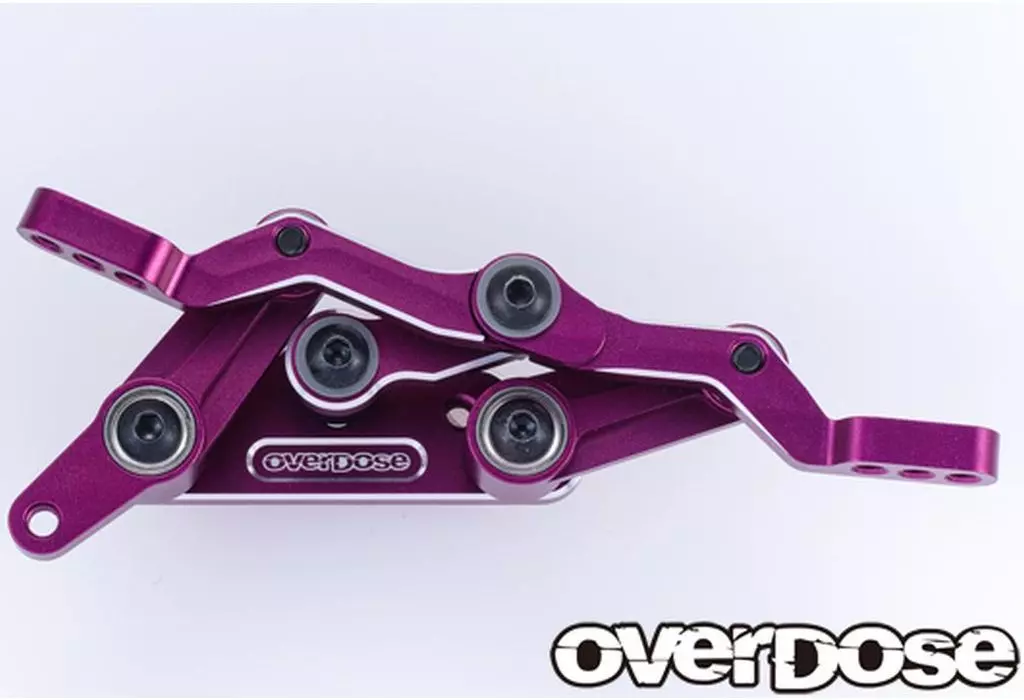

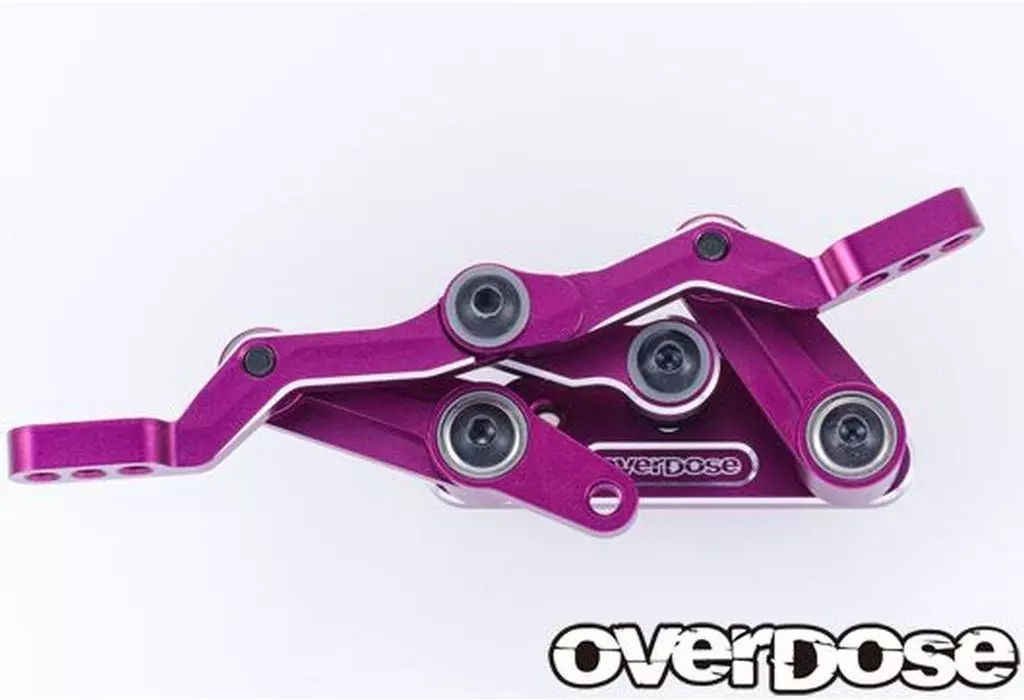

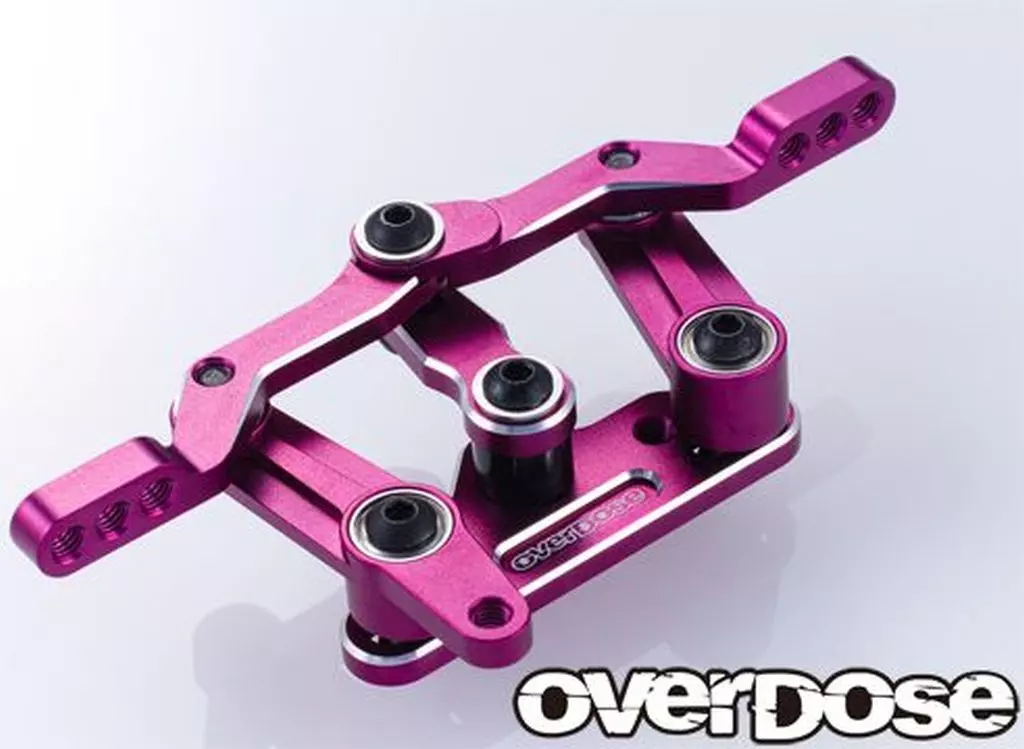

・ The newly developed triple link system is adopted in which the length of the steering link, which used to be one piece, is divided into left and right, and this is controlled by the control link.
・ The length of the control link can be adjusted in 3 stages. This makes it possible to change the trajectory of the tie rod without changing the positional relationship of the tie rod in neutral.

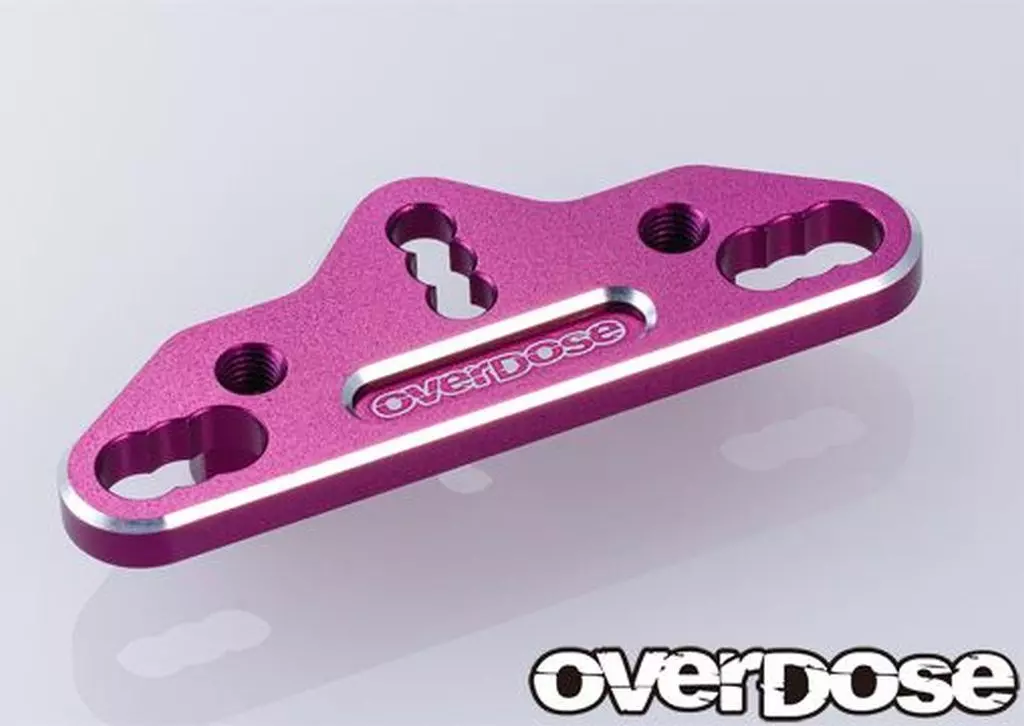

・ The mounting positions of the left and right wipers are set in 3 positions. The movement of the base link can be set in 3 stages.
・ Smooth movement with less backlash is achieved with a total of 11 ball bearings.
・ The bump steer change during steering is minimized by tilting the steering wiper base 5 degrees forward.
Note 1. When used in combination with a normal resin bulkhead, some hole positions cannot be used.
Note 2. Cannot be used with OD2663-5 aluminum front bulkhead Type-2.
Note 3. It is recommended to use with OD3438-40 aluminum front bulkhead Type-3 (For GALM Series).
[Product details]
