Radio control Mini Servo KS3031-04M All-Metal Gear Specification [82278]

Product description ※Please note that product information is not in full comprehensive meaning because of the machine translation.

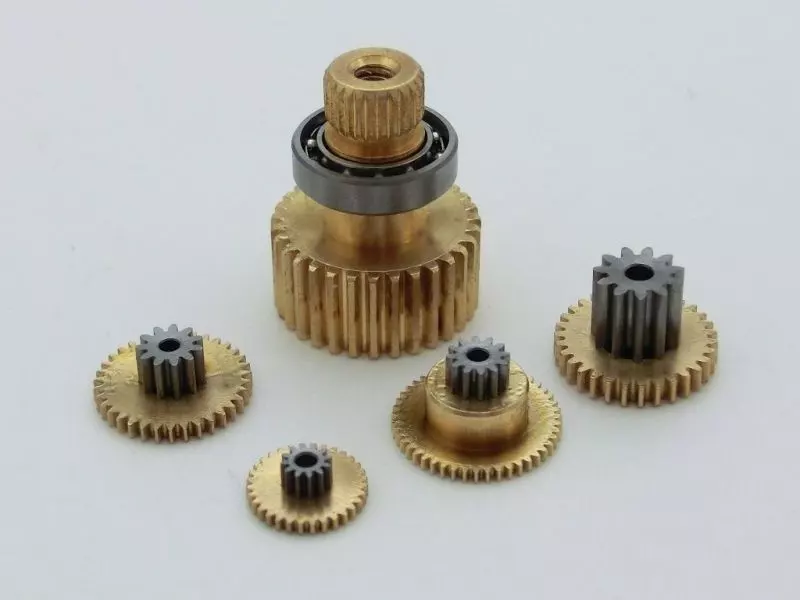

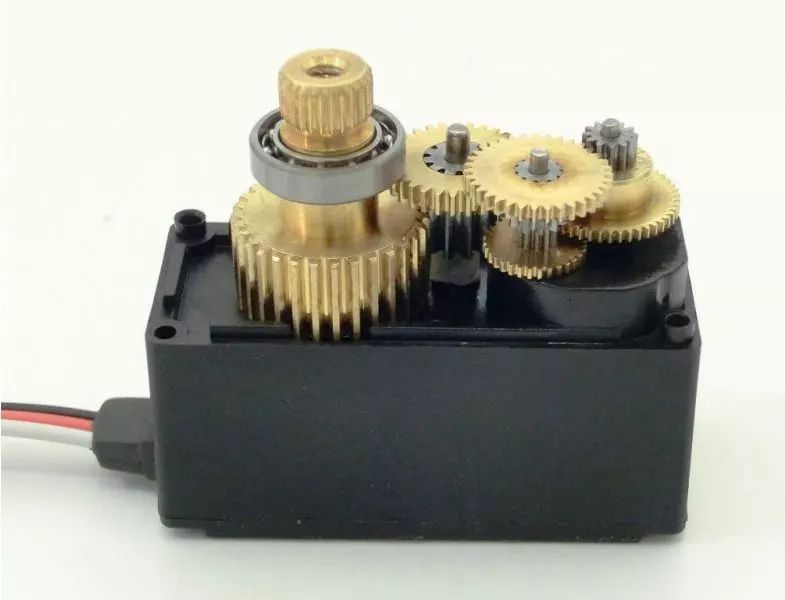

Product explanation ■ It is a high torque mini servo with all-metal gear.
Although it is small, the torque is 4.5 kg.
The gear strength is strong and there is no need to worry about the gear chipping. It is suitable for 1/12 racing and hangon racer that require linear movement for steering operation.
When equipped with hangon racer, some processing is required. (The processing method is written on the back side of the mount.)
Of course, it is also suitable for EP Phantom 4 wd.
The neutral holding force is strong and the weight is only 30g.

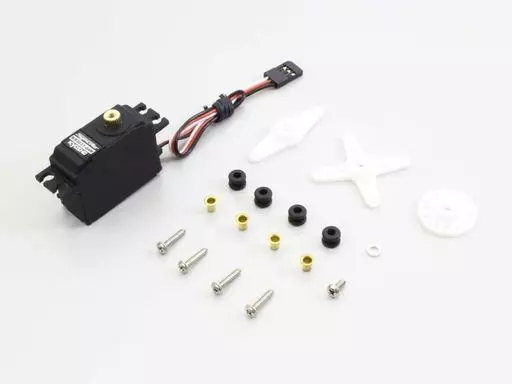

It comes with 3 types of horns : rubber bush, eyelet, mounting screw, round, I-type, and cross type. It can be used in a wide range of categories such as gliders and airplanes.
The operating voltage is 4.8 to 6.0 v (Li-Fe6.6 v, Li-PO7.4 v are not supported). The servo lead wire is 150 mm.
Operating speed is 0.13sec/60 ° (at 6.0 v), torque is 4.5 kgf ・ cm (at 6.0 v)
[Product details]
Dimensions : approx. L35.9 mm W15.1 mm H28.6 mm
Speed : 0.13sec/60 °
Torque : 4.5 kgf ・ cm
Weight : 30g
Lead wire : 150 mm
Serration : FUTABA ・ KYOSHO
