TRAIN CONTROLLER HTC-100 [HTC-100]

Product description ※Please note that product information is not in full comprehensive meaning because of the machine translation.

Product Explanation ■ Full-scale driving of natural running from low speed to high speed
[Features]
• Speed dial with high-touch rubber for delicate train control with fingers

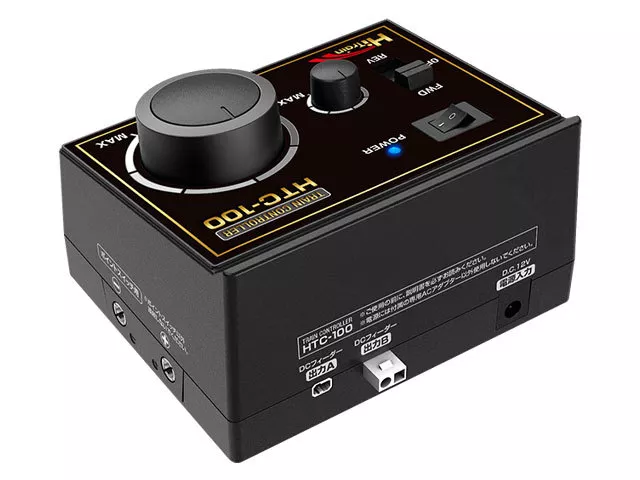

• Equipped with 2 types of feeder connector and compatible

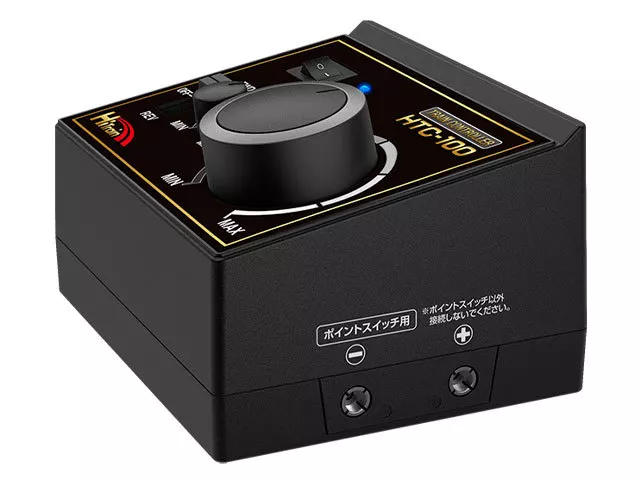

• Equipped with 2 types of point unit terminals
• Constant light function with starting voltage adjustment dial
• Safety protection circuit for detecting short circuits of rails and vehicles
• Smooth ultra-low speed control with new high-frequency circuit
[Basic Specifications]
0 Output : DC12V 2.0A (for N gauge) High-frequency PWM control
0 Starting voltage adjustment (for constant light) Dial Adjustment Width : 0 ~ 10%
0 Size (Body Part) : approx. 130 x 105 x 75 mm (without protruding parts)
0 Weight : approx. 270g
0 AC Adapter (PSE Compliant) : Input : AC100V ~ 230 V, Output : DC12V 2.0A 24W
0 Protection Circuit : Detection of short circuits of rails and motors (operates at 2100 mA or more)
0 Operating Temperature Range : 0 ~ 40 ° C
